Gas Washing Bottle, Large Volume
SKU: PRG-5980
Price Range$102.84 – $1,631.61
Description

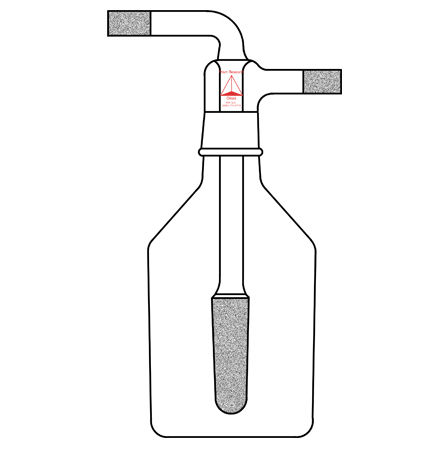

Large Volume Gas Scrubbing / Washing Bottles have large volumes for gas dispersion, from 1 liter to 45 liter. The cylindrical fit is 25mm o.d. x 75mm long, coarse porosity, 40/60 micron. Bottle is equipped with a 45/50 inner O-Ring joint and supplied with a Viton O-Ring (128 Size) the inlet / outlet arms are a heavy wall tubing with sandblasted ends for use with a compression fitting or tube slip fit. Medium (10/15 micron) and extra-coarse (170/200 micron) frits are available upon request. A “Set” is fritted insert and bottle sold together. Bottles and inserts are also offered individually.
| Name | SKU | Price | Buy |
|---|---|---|---|
| Gas Washing Bottle, Large Volume - Options: Bottle Only, Capacity: 4 Liter, Size: 140mm O.D. x 300mm Tall | PRG-5980-70 | $398.90 | |
| Gas Washing Bottle, Large Volume - Options: Bottle Only, Capacity: 9 Liter, Size: 140mm O.D. x 300mm Tall | PRG-5980-71 | $510.74 | |
| Gas Washing Bottle, Large Volume - Options: Bottle Only, Capacity: 13 Liter, Size: 233 mm O.D. 440mm Tall | PRG-5980-72 | $654.70 | |
| Gas Washing Bottle, Large Volume - Options: Bottle Only, Capacity: 19 Liter, Size: 292mm O.D. x 500mm Tall | PRG-5980-73 | $745.53 | |
| Gas Washing Bottle, Large Volume - Options: Bottle Only, Capacity: 45 Liter, Size: 408mm O.D. x 590mm Tall | PRG-5980-74 | $1,352.23 | |
| Gas Washing Bottle, Large Volume - Options: Bottle Only, Capacity: 1 Liter, Size: 107mm O.D. x 225mm Tall | PRG-5980-75 | $102.84 | |
| Gas Washing Bottle, Large Volume - Options: Bottle Only, Capacity: 2 Liter, Size: 133mm O.D. x 270mm Tall | PRG-5980-76 | $121.70 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 2 Liter, Size: 5/8" O.D. Fittings | PRG-5980-63 | $323.93 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 2 Liter, Size: 5/8" O.D. Fittings | PRG-5980-64 | $202.23 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 1 Liter, Size: 5/8" O.D. Fittings | PRG-5980-61 | $310.21 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 1 Liter, Size: 5/8" O.D. Fittings | PRG-5980-62 | $207.36 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 45 Liter, Size: 3/4" O.D. Fittings | PRG-5980-29 | $279.35 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 1 Liter, Size: 3/4" O.D. Fittings | PRG-5980-41 | $317.08 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 1 Liter, Size: 3/4" O.D. Fittings | PRG-5980-42 | $215.96 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 2 Liter, Size: 3/4" O.D. Fittings | PRG-5980-43 | $332.49 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 2 Liter, Size: 3/4" O.D. Fittings | PRG-5980-44 | $210.79 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 1 Liter, Size: 1/2" O.D. Fittings | PRG-5980-51 | $305.08 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 1 Liter, Size: 1/2" O.D. Fittings | PRG-5980-52 | $202.23 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 2 Liter, Size: 1/2" O.D. Fittings | PRG-5980-53 | $323.93 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 2 Liter, Size: 1/2" O.D. Fittings | PRG-5980-54 | $202.23 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 4 Liter, Size: 3/4" O.D. Fittings | PRG-5980-21 | $882.64 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 4 Liter, Size: 3/4" O.D. Fittings | PRG-5980-22 | $227.94 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 9 Liter, Size: 3/4" O.D. Fittings | PRG-5980-23 | $738.68 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 13 Liter, Size: 3/4" O.D. Fittings | PRG-5980-24 | $882.64 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 9 and 13 Liter, Size: 3/4" O.D. Fittings | PRG-5980-25 | $227.94 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 19 Liter, Size: 3/4" O.D. Fittings | PRG-5980-26 | $985.47 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 19 Liter, Size: 3/4" O.D. Fittings | PRG-5980-27 | $239.94 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 45 Liter, Size: 3/4" O.D. Fittings | PRG-5980-28 | $1,631.61 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 19 Liter, Size: 5/8" O.D. Fittings | PRG-5980-16 | $978.62 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 19 Liter, Size: 5/8" O.D. Fittings | PRG-5980-17 | $233.09 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 45 Liter, Size: 5/8" O.D. Fittings | PRG-5980-18 | $1,626.45 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 45 Liter, Size: 5/8" O.D. Fittings | PRG-5980-19 | $274.21 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 4 Liter, Size: 5/8" O.D. Fittings | PRG-5980-11 | $731.16 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 4 Liter, Size: 5/8" O.D. Fittings | PRG-5980-12 | $220.41 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 9 Liter, Size: 5/8" O.D. Fittings | PRG-5980-13 | $730.11 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 13 Liter, Size: 5/8" O.D. Fittings | PRG-5980-14 | $874.09 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 9 and 13 Liter, Size: 5/8" O.D. Fittings | PRG-5980-15 | $219.36 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 19 Liter, Size: 1/2" O.D. Fittings | PRG-5980-07 | $229.65 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 45 Liter, Size: 1/2" O.D. Fittings | PRG-5980-08 | $1,619.60 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 45 Liter, Size: 1/2" O.D. Fittings | PRG-5980-09 | $267.35 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 9 and 13 Liter, Size: 1/2" O.D. Fittings | PRG-5980-05 | $217.65 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 4 Liter, Size: 1/2" O.D. Fittings | PRG-5980-01 | $616.55 | |
| Gas Washing Bottle, Large Volume - Options: Insert, Capacity: 4 Liter, Size: 1/2" O.D. Fittings | PRG-5980-02 | $217.65 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 9 Liter, Size: 1/2" O.D. Fittings | PRG-5980-03 | $728.39 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 13 Liter, Size: 1/2" O.D. Fittings | PRG-5980-04 | $831.23 | |
| Gas Washing Bottle, Large Volume - Options: Bubbler Set, Capacity: 19 Liter, Size: 1/2" O.D. Fittings | PRG-5980-06 | $975.19 |
